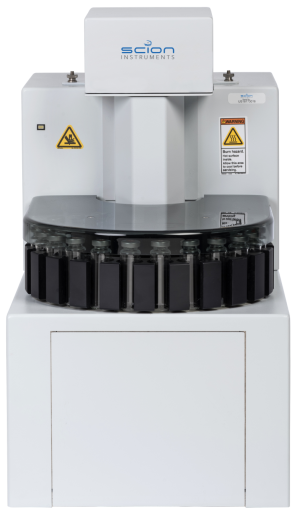

Versa Automated Headspace Vial Sampler

Static and Dynamic Headspace System - HT3

Static Headspace

Static Headspace is a technique used for sampling the gas phase of a sample. The technique can be used for both qualitative and quantitative analysis.

Static headspace is one of the most popular techniques for gas chromatography due to its versatility for analysing volatile organic compounds (VOCs) in a complex variety of matrices. This is because it eliminates tedious sample preparation steps, as well as prevents contamination problems that are common to other sample introduction techniques.

The Versa from SCION Instruments is the perfect solution for applications which require all the advantages of headspace analysis, available to fit any budget.

Key Highlights—Versa:

· Small on size but big on value. Only 12″ wide

· 20-position autosampler/single position platen oven

· 22mL vials

· Sample heating to 200°C throughout pathway

· Built-in pressure control to ensure consistent volume for all samples regardless of external conditions

· Inert sample pathway including transfer line, sample needle, and loop provide superior analytical results by eliminating adsorption and reducing carryover

· Automatic leak check and Benchmark test for quick troubleshooting

· Simple method development using Method Optimization Mode (M.O.M.)

· Versa TekLink™ 2G software for use as standard or full 21 CFR compliance

Static Headspace Gas Chromatography

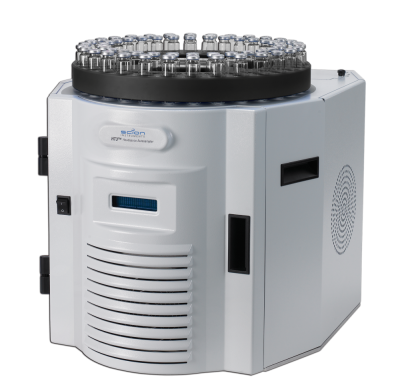

The Static Headspace, HT3 from SCION Instruments combines static and dynamic headspace analysis techniques into one easy-to-use unit, saving you time, bench space and money.

Built on proven static headspace technology, the HT3 Headspace Analyzer provides the following added benefits:

· Sensitivity: Increased sensitivity from 50 to 100 times with the Dynamic Headspace option dependant on compound

· Accuracy: Accurate and precise results with electronically controlled flow and pressure

· Temperature: Up to 300°C temperature throughout the sample pathway

· Scheduling: Single scheduling for multiple methods and techniques

Key Highlights—HT3

· Standard integrated 60-position autosampler with 10-position platen heater provides true walk away automation

· Increased sensitivity from 50 to 100 times with the Dynamic Headspace option (compound dependent)

· Removable sample path for trouble-free maintenance

· High temperature capability to 300°C expands range of applications

· Inert sample pathway including transfer line, sample needle and loop provide superior analytical results by eliminating adsorption and reducing carryover

· Automated Leak Check and Benchmark for quick troubleshooting

· Automated method development using Method Optimization Mode (M.O.M.)

· 21 CFR Compliance

· Built-in Mass Flow Controller ensures consistent flow and pressure for all samples regardless of external conditions
